SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: SF10-24/10-48/15-24/15-48/20-48/20-96

Maximum Current: 30A

Is Smart Device: NO

Certification: CE

Application: Wind Controller

In order to protect the system including the wind generator and the battery, the controller willbrake the wind generator when the battery is completely charged or the input voltage is too high. When the input voltage from wind generator becomes lower, the controller will automatically recover the charging.

Three LED indicators are used toshow the status of the system.

Waterproof body, protection gradeup to IP67.

 Wide range working temperature, -35℃～70℃.

Model Number

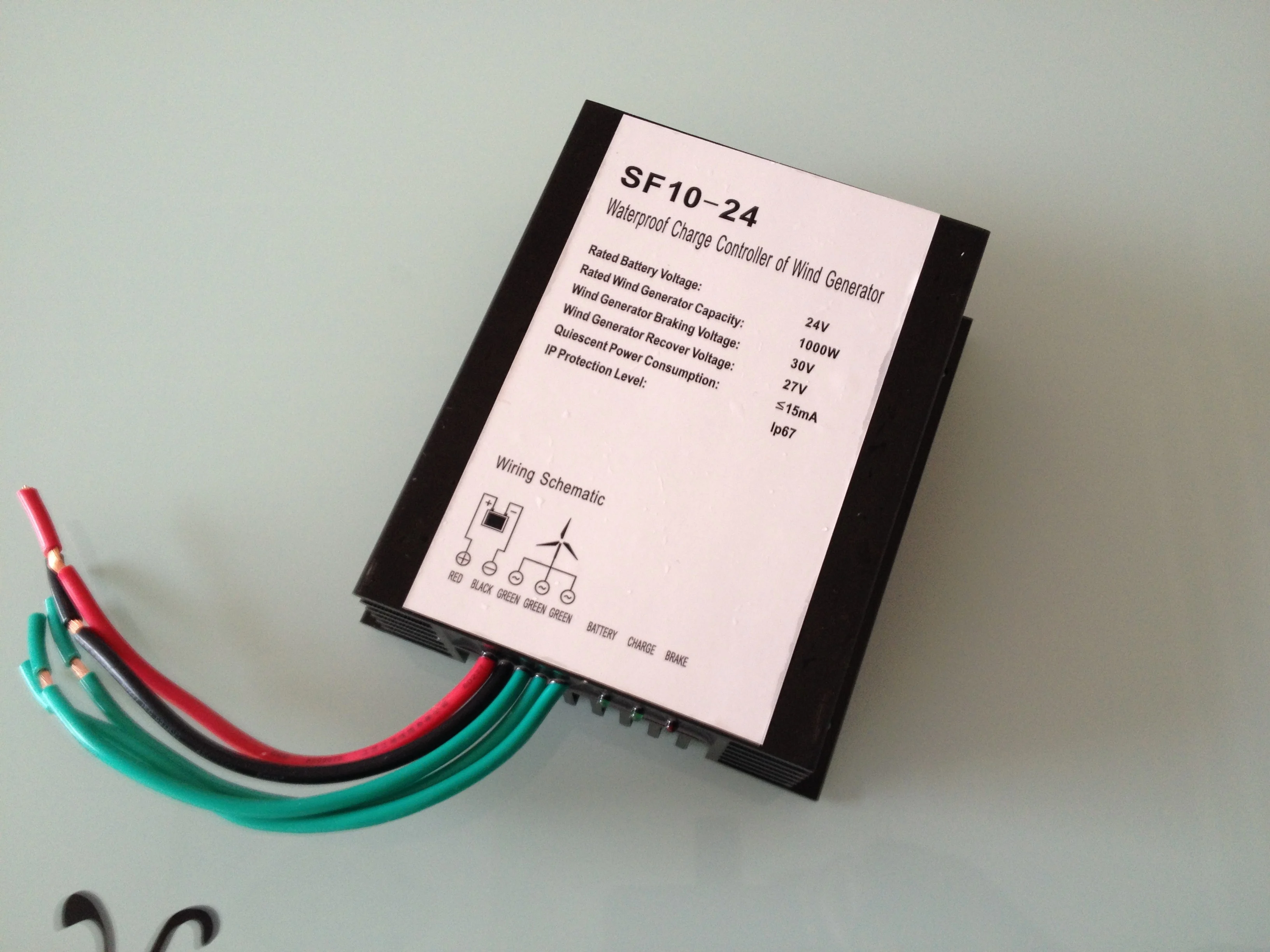

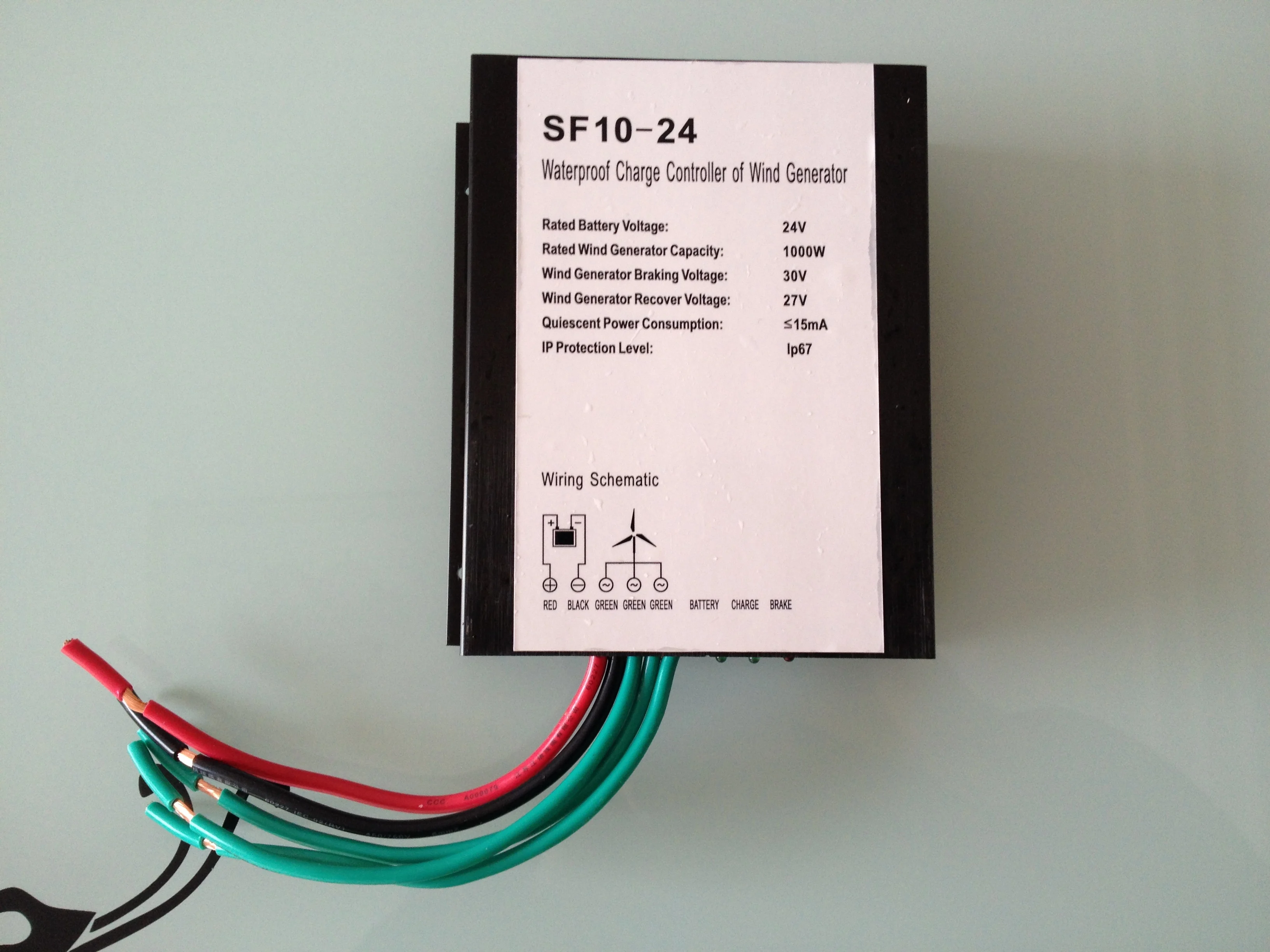

SF10-24

SF10-48

SF15-24

SF15-48

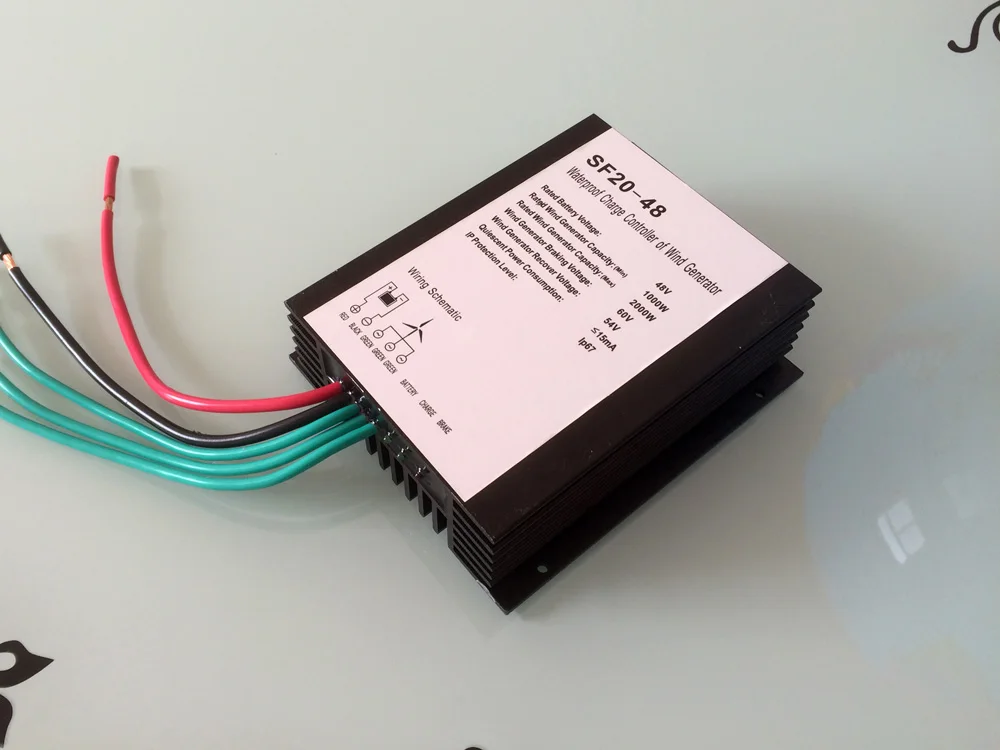

SF20-48

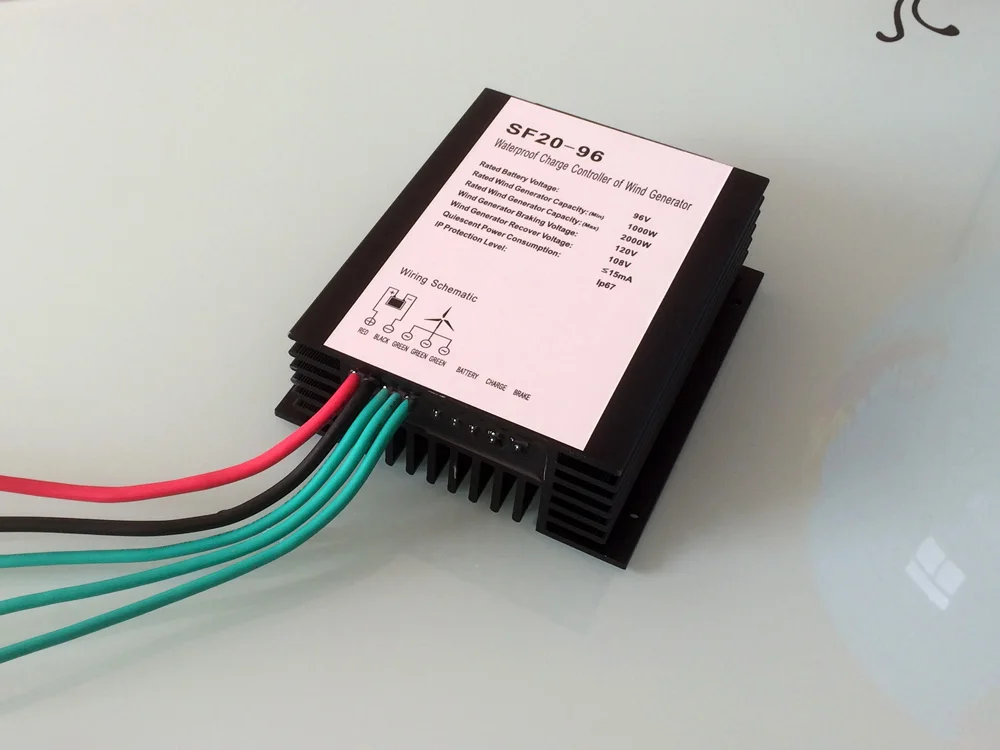

SF20-96

Rated Powerof the Wind Generator

1000W

1000W

1500W

1500W

2000W

2000W

Rated Voltage of the Battery

24V

48V

24V

48V

48V

96V

Brake Voltage

30V

60V

30V

60V

60V

120V

Recovery Voltage

27V

54V

27V

54V

54V

108V

IndicatorLamps

Three LEDS

Dimension

150mm×130mm×50mm

Quiescent Current

≤15 mA

Protection Grade

IP67

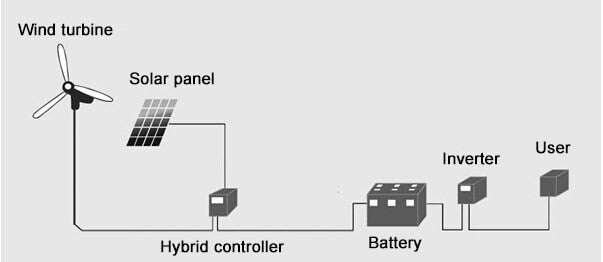

Make sure the rated voltage of the wind generator matchwith the rated voltage of the battery.

Don’t directly connect the wind controller with the wind generator until it has been connected with the battery or other DC load.

Connect controller with the battery properly.

The “+” red wire of the controller with the positivepole of the battery, the “-” black wire of with the negative pole of the battery.

Connect in order: Connect with the battery first, then connect the three green wires with the AC output of the wind generator.
